NEW FMS 6,000 LBS. DOUBLE ARM UNCOILER (MODEL NUMBER - UCD-3-250) (Hydraulic Mandrel Expansion, Manual Base Rotation)

We are pleased to offer for your consideration the following uncoiler:  Ref. No.  M1024

SPECIFICATIONS

Maximum Load Capacity:
Coil I.D.
I.D. Expansion Range:
Coil O.D.:
Maximum Strip Width:
Fill Speed of Uncoiler/Accumulator:
Mandrel Face:
Mandrel Materials:
Mandrel O.D.:
Air Pneumatic Power Specifications:
Voltage:
Control Voltage:

6,000 Lbs. on Each Side
20” (508 mm)
18” to 22”
Maximum – 72” (1830 mm)
10” (250 mm)
600 FPM Maximum
13” (330 mm)
S45C
3.93” (100 mm)
Maximum – 100 PSI
460 Volt, 3 Phase, 60 Hz
110 Volt, AC/24 V DC

EQUIPMENT SUMMARY

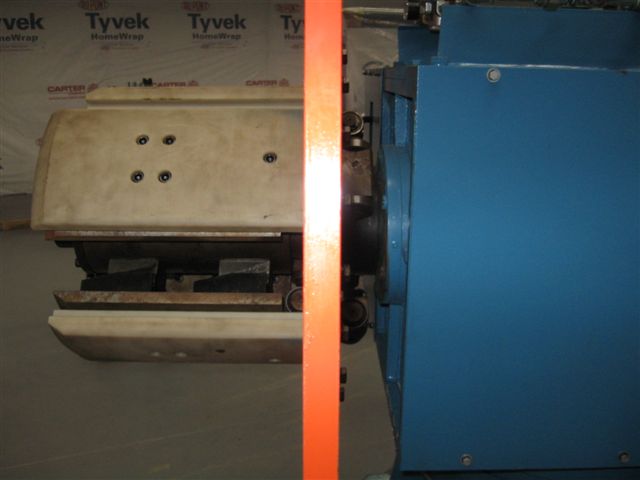

4-Leaf Mandrel

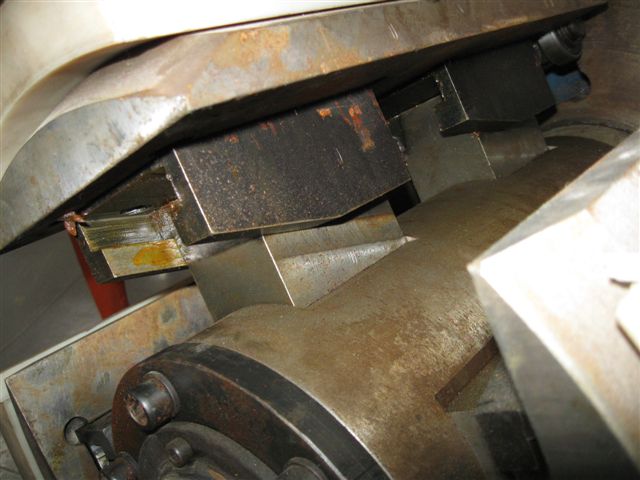

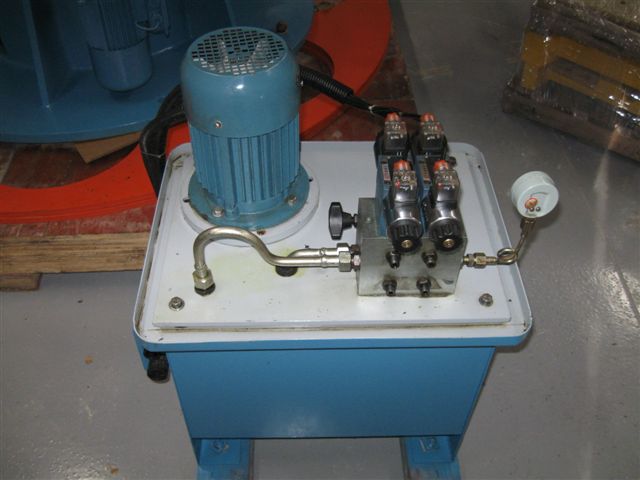

Link Type Hydraulic Mandrel Expansion
Manual Strip Feed Up
Heavy Duty 2-Stage Air Brake for Drag and Brake
Manual Total Brake Release Valve for Easy Strip Threading
Foot Pedal Release Manual Base Rotation with Pneumatic Position Stop Mechanism

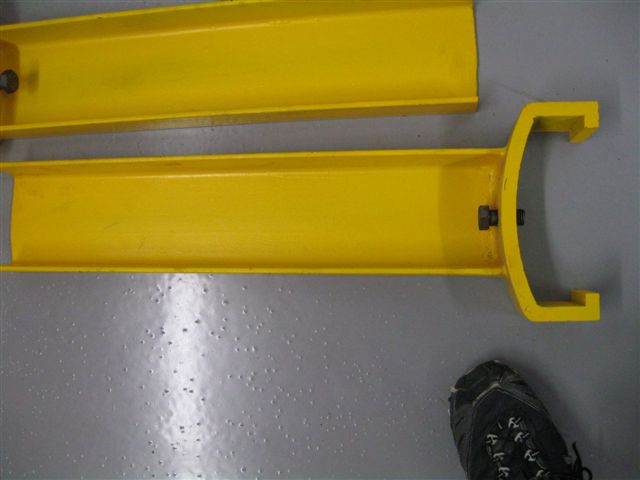

Wrench Free Clamp Down Coil Keepers
Full Back Plates with Peek Holes

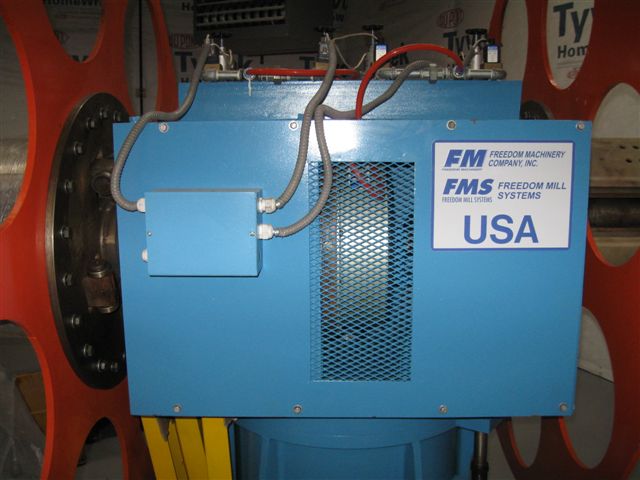

NEMA 12/IP 55Compliance Operator Console, Control Box, and Wired Remote Pendent
User Friendly and Easy to Operate
