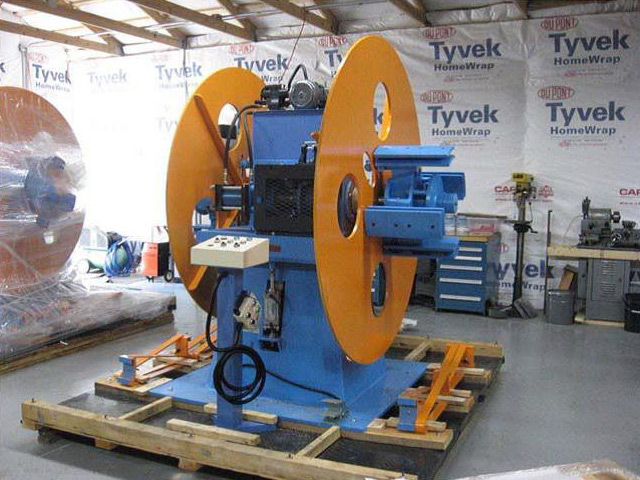

NEW FMS 10,000 LBS. DOUBLE ARM UNCOILER (MODEL UCD-5-300)

We are pleased to offer for your consideration the following NEW uncoiler:  Ref. No.  M667

SPECIFICATIONS

Maximum Load Capacity:
Coil I.D.
I.D. Expansion Range:
Coil O.D.:
Maximum Strip Width:
Mandrel Face:
Mandrel Materials:
Mandrel O.D.:
Hydraulic Cylinder I.D.:
Piston Size:
Piston Stroke Range:
Coil Keepers:
Hydraulic Unit Specifications:
Air Pneumatic Power Specifications:

10,000 Lbs. on Each Side20” (508 mm)
20” (508 mm)
18” (458 mm) – 22” (558 mm)
Maximum – 72” (1830 mm)
12” (305 mm)
16.1” (410 mm)
S45C
5.9” (150 mm)
4.92” (125 mm)
2.36” (60 mm)
1.96” (50 mm)
4 pieces on each side
2 H.P. 70 kg/cm2 (1400 PSI)
Maximum – 100 PSI

EQUIPMENT SUMMARY

4-Leaf, Wedge Type, Hydraulic Mandrel Expansion
Manual Strip Feed Up
Heavy Duty 2-Stage Air Brake; Drag/Brake
Manual Total Brake Release Valve for Easy Strip Threading
Foot Pedal Release Manual Rotation with Pneumatic Position Stop Mechanism
Full Back Plates
Coil Keeper; Wrench Free Type, 4 Pieces Each Side
Control Box
Operator Console with Wired Remote Control Pendent

Condition:  NEW
